UST® is designed to deliver quantitative mechanical characterization of surface analysis within one open platform in nanometer resolution.
It serves best to the R&D center of our industrial partners and research institutes all over the world.
Built on a patented measurement protocol, the UST provides essential and reliable surface profiler solutions in both 2D & 3D in the nanometer resolution with a centimeter measuring range.
It perfectly closes the gap of a classical AFM and a macrometer surface analysis instrument.
Description

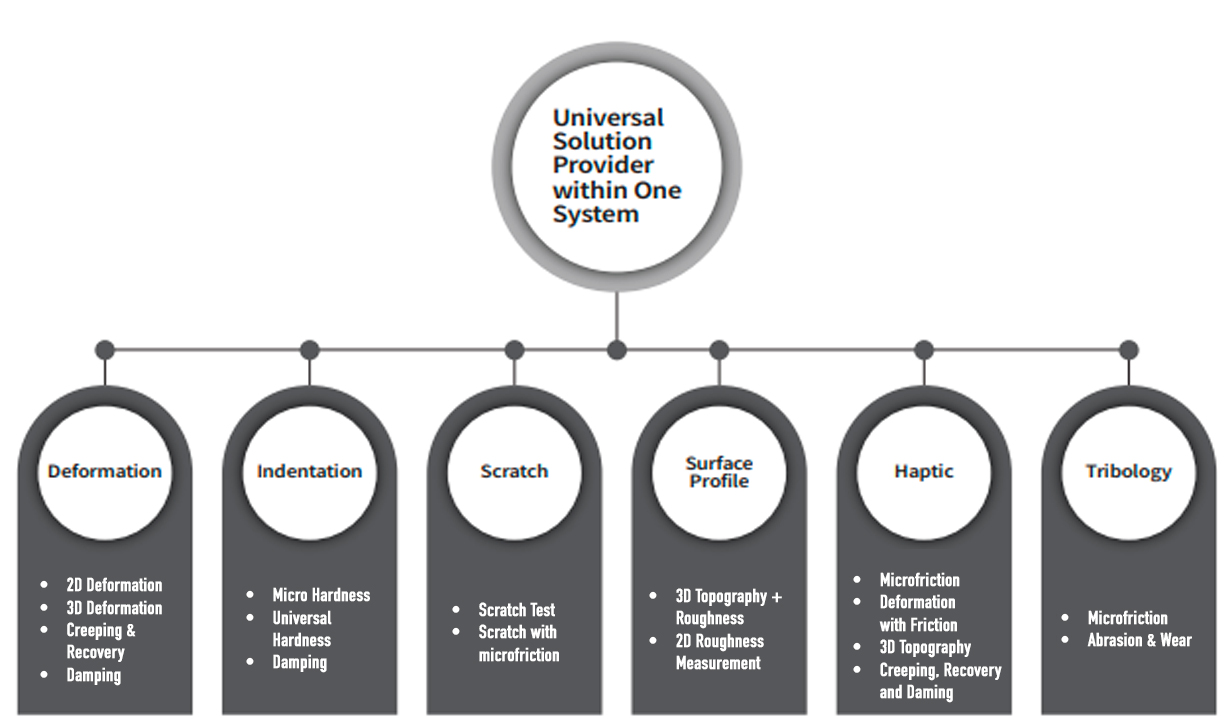

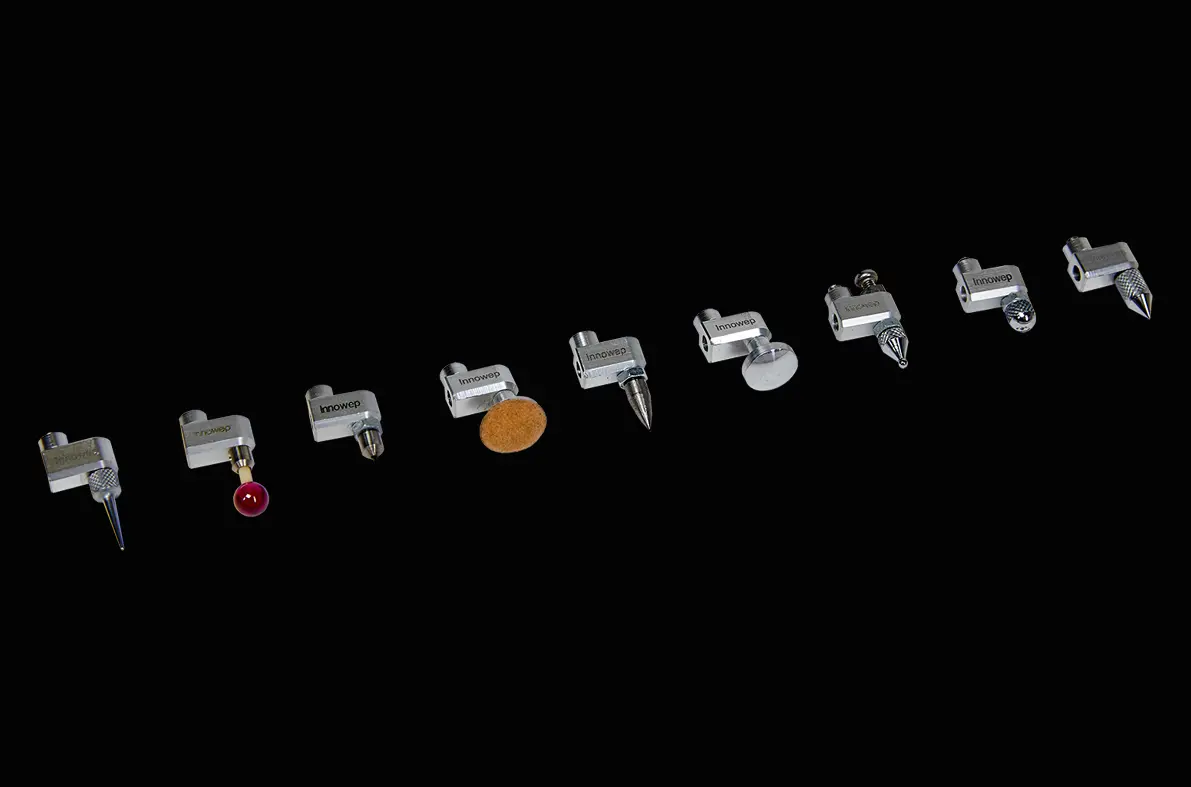

UST® – Universal Surface Tester, is the only open multi-modular system that provides a complete mechanical testing solution for the evaluation of bulk materials and surface coatings. Over 10 measurements can be accomplished and over 60 different test tips have been developed to meet the diversity of your characterization requirements.

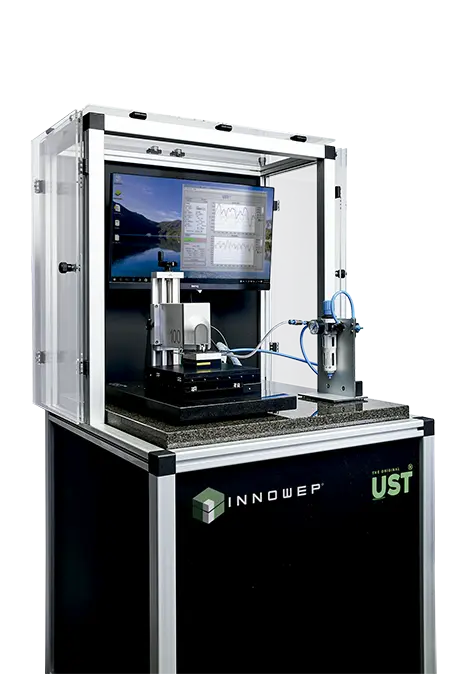

The basic unit of UST® has three versions: UST® 100 (loading range 1mN-100mN), UST® 1000 (loading range 10mN-1000mN) and UST® 50 (loading range 2-50N). The basic unit consists of floor-stand cabinet, measurement head with 3 tips, automatic X-Y table and data acquisition system.
Advantages of the UST®
Among various kinds of commercial available in-line material property testing instruments, UST® is by far the only tester which closes the gap between the traditional macro-mechanical testing machines and nanoscale machines, e.g. AFM.

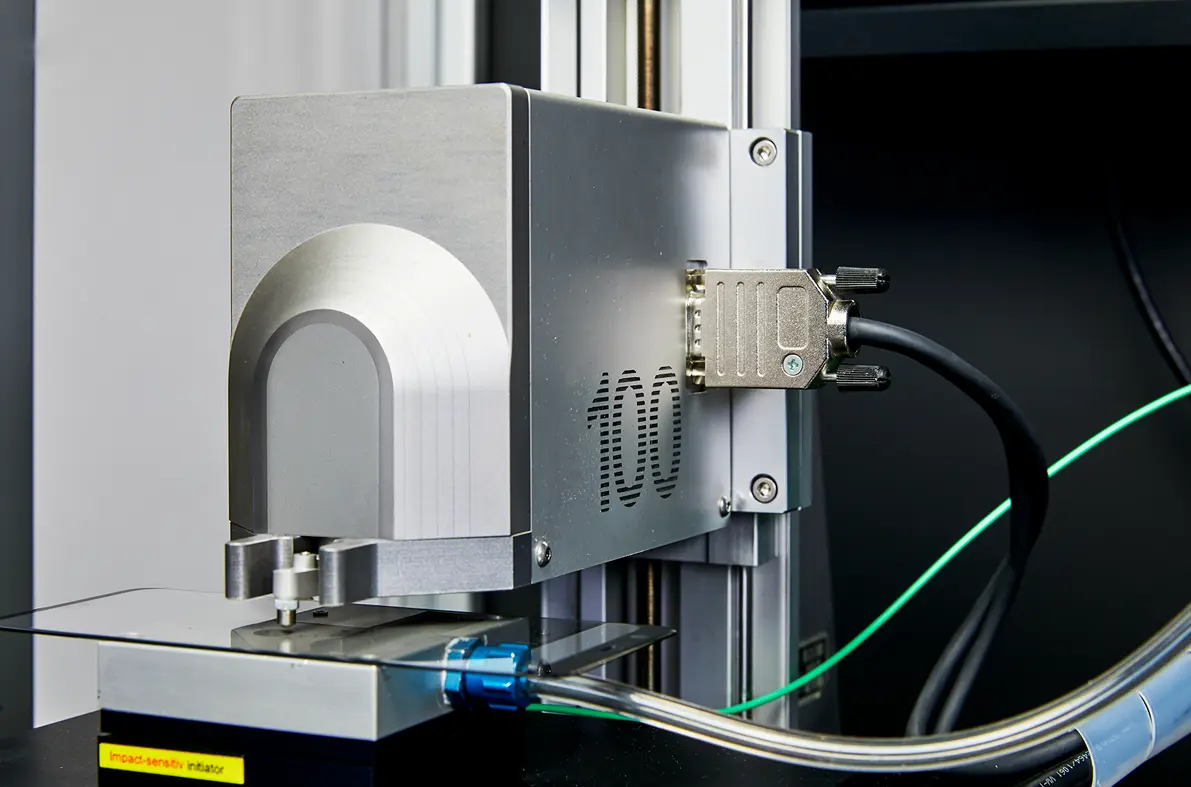

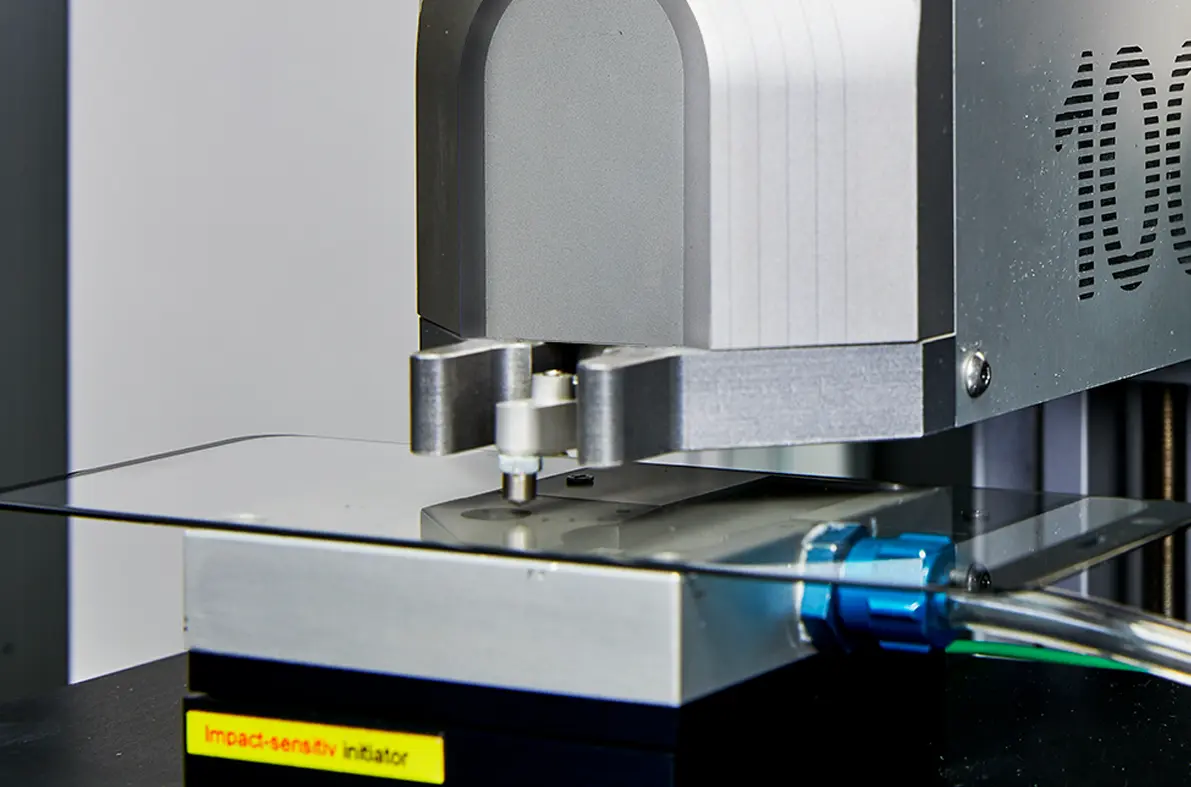

- High precision load sensor combined with piezo actuator and active feedback loop control for real-time measurement of normal load and friction force
- Options with different load range by easy exchange of measuring head
- Automatic X-Y table with built-in motor for high precision profiling, the measurement area is up to 60 mm × 60 mm
- High resolution table for high repositioning

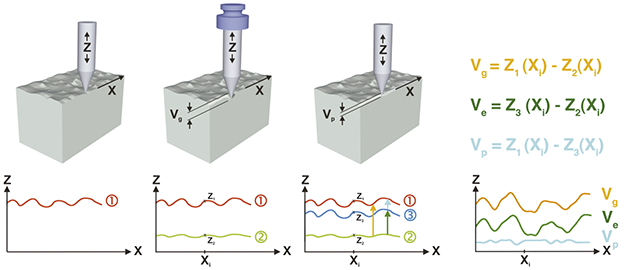

Test Principle of UST® – Weinhold’s Method
Test Principle of UST® – Weinhold’s Method
The UST® measurement procedure consists of a mechanically scanning by a stylus on the sample surface along a straight line several times. During this patented MISTAN® procedure, the stylus is moved on the surface either without load or with a defined load.
For further information, standards and specifications, be sure to look into the Downloads and Links we provide for this product.

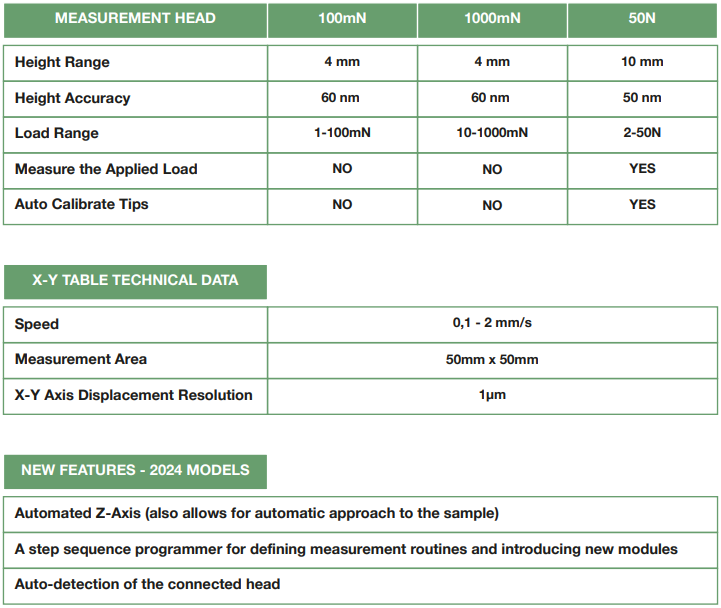

Specs
